Other Library Nodes

Errant Biomes comes with library of helper nodes for common operations.

You can find them under Biomes category.

Flatness check

Flatness check node allows you find areas of terrain with limited height variation.

This is useful to ensure suitable terrain when spawning large meshes from species

To use it

1. Add Landscape Height to your material mask material parameters.
2. Specify the name of the texture object parameter.
3. Create texture object parameter in the material with name from previous step.
4. Set FallbackMask as default texture in that texture object paramter.
5. Add it as height to the FlatnessCheck node.

For slower but more precise calculations on the edges of generation components enable Include Neighbors in both the material parameter and in the material function parameters.

Noise

You can find Noise node in Biomes category.

It's just a material function wrapper around Unreal built-in noise node but has better defaults for use with Biome Material Masks.

Note: It's best to just play-around with the preview enabled to get an intuition for it.

Height

You can access landscape height using Height node in the Biomes category

With smooth gradient

For height based mask from height you can use HeightMask node from the Biomes category.

To get values for MinHeight and MaxHeight you can use some Actor on the level as reference.

You could for example just place boxes and copy their Location Z values.

Doing that gives you 0 to 1 gradient between the altitudes of these two locations.

With hard cutoff

If you want to have hard transition at some altitude you can use HeightMaskHard node from the Biomes category.

Slope

You can get a slope angle of the landscape using the Slope node from the the Biomes category.

Slope node outputs values in 0 to 1 range, where 1 means the slope of 90 degrees (vertical cliff).

note

The returned value may not change linearly with the slope. Beacuse of that an output value of 0.05 doesn't mean 5% of 90 deg.

You can set the MinSlope and MaxSlope inputs to control its 0 to 1 range.

If you'd like to have values lower then 20 degrees to output 0 you would set MinSlope to 0.222(20 / 90). Now the Slope node outputs 0 to 1 values from 20 degrees to 90 degrees.

Play around with the values using the preview to get an intuition for it.

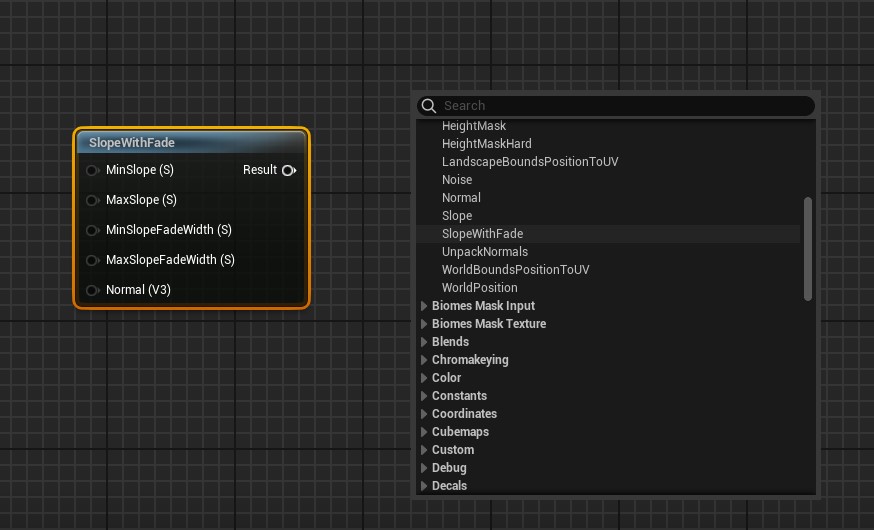

Slope With Fade

We also include a slope node variant that has additional controls for smoother falloff.

UVs for sampling with neighbors info

Some of Errant Biomes nodes contain the Include Neighbours switch. With that input, the texture will contain not only that texture data but also data from all the masks around it.

Those neighbours will be merged into one big texture. This is needed for calculation and effects that sample around the current pixel, like: Blur, SDFs, Extends etc.

U = upper, M = middle, R = right, L = left, D = down, X = current component

Image diagram
UL UM UR
ML X  MR
DL DM DR

For easier sampling of data in the middle Errant Biomes comes with a BiomesTexCoordWithNeighbours for calculating UVs.

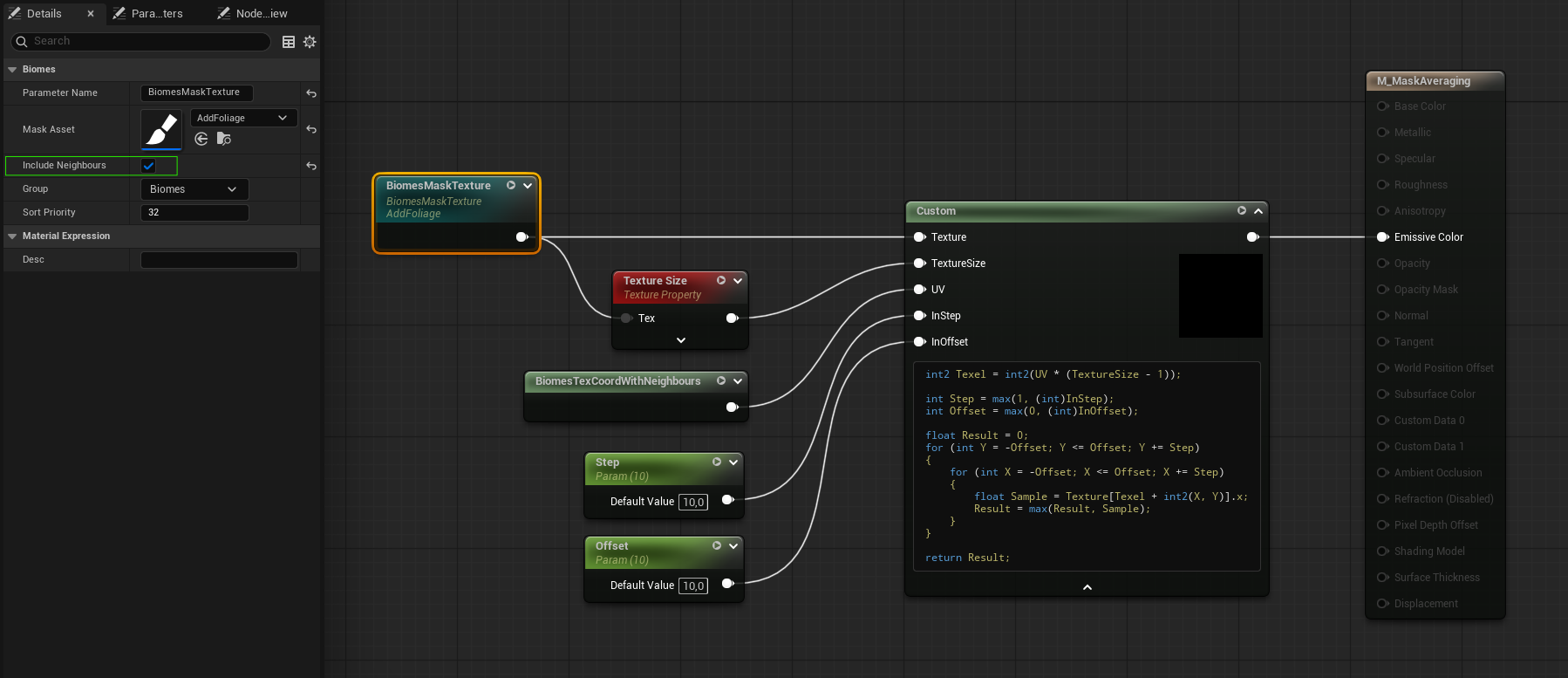

Here's an example of using the neighbours UVs node for blurring input mask.
