Working with Unreal World Partition system

The Unreal Engine's World Partition system serves as a robust map streaming solution designed for large environments. Errant Biomes fully integrates with this system, although there are specific considerations for optimal performance and behavior.

Handling Large Actors with World Partition​

Errant Biomes often generates large actors by aggregating instances from multiple species into composite instance components. These large actors pose challenges to Unreal's World Partition when it comes to placement within runtime grid cells.

To address these issues, Errant Biomes provides a specialized base actor class—ABiomesPartitionActor. This class ensures the correct placement of large actors within the World Partition's runtime grid for Errant Biomes spawned actors.

info

Version Note:
The ABiomesPartitionActor class was introduced in Errant Biomes 1.4. If your project was initiated on an earlier version, ensure that your Actor Template Class under the species Instances Settings has been updated to this new class.

Configuring Streaming Distance for Species​

The World Partition system allows you to control when specific actor get streamed in.

This is configurable via the actor properties and for species can be found in actor template property.

There can be multiple runtime grids in the world.

Here are some examples for how to fine-tune the streaming distance for different species:

Method 1: Differentiate by Distance​

Create separate runtime grids to specify the streaming distance for different types of objects.

  1. Close Grid: Set the loading range to 25,600 cm.
  2. Medium Grid: Configure a loading range of 102,400 cm.
  3. Far Grid: Go for an even greater distance, such as 204,800 cm.

Method 2: Differentiate by Object Types​

Alternatively, you can categorize runtime grids based on the types of objects they contain.

  1. Ground Plants
  2. Trees
  3. Rocks
  4. Additional Categories (as needed)

World Partition Builder​

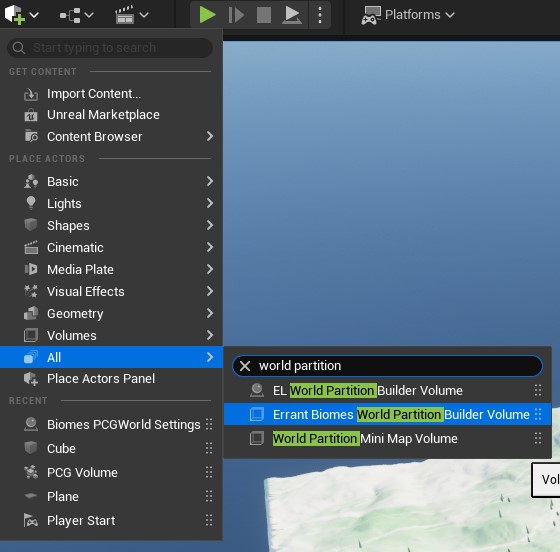

Errant Biomes provides World Partition Builder that can be used from editor or command-line/builder to update biomes over the whole map.

Editor​

You can start the process in the editor under the Build menu by selecting the Build Errant Biomes option.

Build Errant Landscape menu option

Command Line​

Errant Landscape World Partition Builder can be run as a commandlet the same as other world partition builders. Make sure to see the Unreal Engine documentation page first.

The name of the builder is BiomesWorldPartitionBuilder.

Here's an example following the pattern from Unreal Engine documentation:

UnrealEditor.exe "C:\Users\user.name\Documents\Unreal Projects\MyProject\MyProject.uproject" "/Game/ThirdPersonBP/Maps/OpenWorldTest" -run=WorldPartitionBuilderCommandlet -AllowCommandletRendering -builder=BiomesWorldPartitionBuilder
